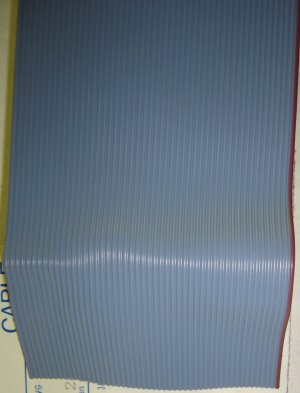

This is a brand new box of Thomas & Betts, ribbon cable.
Description
* RIBBON CABLE, 50WAY, PER M
* Pitch:1.27mm
* Cores, No. of:50
* Wire size, AWG:28AWG
* Area, conductor CSA:0.072mm2
* Approval Bodies:UL
* Cable UL style number:UL2651
* Capacitance:45.9pF/m
* Colour:Light Blue
* Conductor make-up:7/36AWG
* RoHS Compliant: Yes
Code: 20095AR/IF/LL
awyungsource has been providing component level parts, "Hard to Find" parts, fast moving and high failure parts and components to the service industry for over 23 years. Worldwide sourcing and procurement services available for electronic parts, accessories, assembly, manufacturing, etc.
With our worldwide partners, associates and contacts, we have the ability to literally source most any products.
If you are in need of any electronic part, accessory, component, or product, please drop me an email with the model, brand, and part number to
[email protected].
.050" PITCH FLAT CABLE
SERIES 171 – 28 AWG (7/36) STRANDED
PHYSICAL PROPERTIES
INSULATION MATERIAL: PVC
CONDUCTORS: 28 AWG, Stranded
CONDUCTOR SPACING MM (IN): 1.27 (.050)
ELECTRICAL PROPERTIES
VOLTAGE RATING: 300V rms
INSULATION RESISTANCE: >1010 Ohms
IMPEDANCE: 100 Ohms
CAPACITANCE @ 1 MHZ: 46 pF/m (14.0 pF/ft.)
INDUCTANCE @ 1 MHZ: .46 μH/m (.14 μH/ft.)
PROPOGATION DELAY: 4.53 nSec/m (1.38 nSec/ft.)
ENVIRONMENTAL PROPERTIES
TEMPERATURE RATING: 105° C
PACKAGING
STANDARD: Splice free 100 foot rolls with UL/CSA markings on reels
