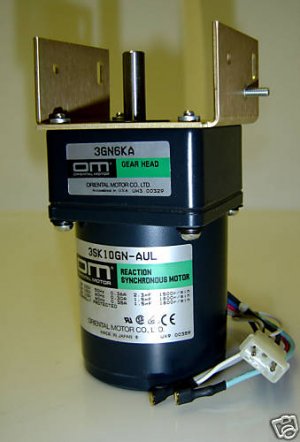

ORIENTAL MOTORREACTION SYNCHRONOUS MOTOR WITH GEARHEADMOTOR & GEARHEAD SHIPPED MOUNTED TOGETHER!MOTOR: 3SK10GN-AUL / GEARHEAD: 3GN6KASpecificationsProduct LineORIENTAL MOTOR ®Motor TypeSynchronousMotor Frame Size2.76 in. sq.Output Power HP (W)1/75 HP (10W)Voltage (VAC)Single-Phase 115 VACFrequency (Hz)60Gear Ratio (X:1)6 :1Gear/ Shaft TypeParallel ShaftRated Torque (lb-in)2.3Rated Speed (rpm)300Permissible Load Inertia27.72 oz-in2Available to ShipSame Day (if ordered by 12pm PST) (1-10 pcs)RoHS CompliantNoSafety StandardsULCSAENCECE MarkingLow Voltage DirectivesInsulation Resistance100 M Ω or more when 500 VDC is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity.Dielectric StrengthSufficient to withstand 1.5 kV at 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity.Temperature RiseTemperature rise of windings are 135°F (75°C) or less measured by the resistance change method after rated motor operation.Insulation ClassUL/CSA Standard Class A [221°F (105°C)], EN Standard Class E [248°F (120°C)]Overheat ProtectionBuilt-in thermal protector (Automatic return type). Operating temperature, open: 248°F ± 9°F (120°C ± 5°C) close: 170.6°F ± 27°F (77°C ± 15°C)Ambient Temperature Range14°F ~ 104°F (-10°C ~ 40°C) (nonfreezing)Ambient Humidity85% maximum (noncondensing)Degree of ProtectionIP20COMPARE TO ONLINE PRICES OF $166.00
